Mate
with Single Lampholders
-------------------------------------------------------------------------------------

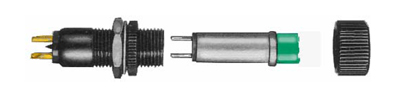

These lens caps and collars mate with the single lamp holders. The Collars may be used with C-lites that have colored lenses. The lens Caps should be used with C-lites with water clear (transparent) lenses. The lens caps are high temperature plastic with anodized aluminum bushings.

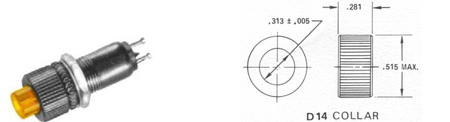

D14
--------------------------------------------------------------------------------------
The D14 knurled collar is designed for use
On the DHO holder only. The collar securely
retains all CF,CG or CR series C- lites cartridges.

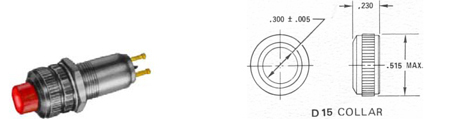

D15
--------------------------------------------------------------------------------------
The D15 is a new trim style collar for the
DHN or DHO holders. The collar securely
Retains all CF, CG or CR series C-lite
Cartridges.

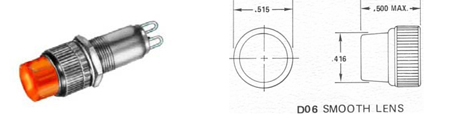

D06
----------------------------------------------------------------------------------------
The D06 lens caps rotate so lens marking may
Be aligned after installation. These caps mate
With the CF03, CG03, CR03, and CF24 style
C-lite. The D06 meets MIL—3661, type LC32.

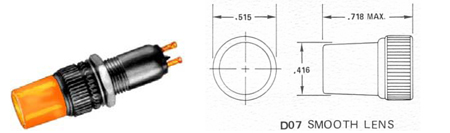

D07
-----------------------------------------------------------------------------------------
The D07 lens will rotate to align lens marking.
The long cap mates with the CF, CG, and CR
Cartridges with the dome and long flat shapes.

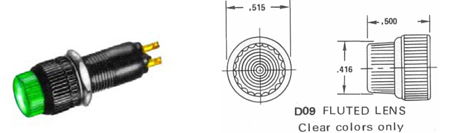

D09
-----------------------------------------------------------------------------------------
The D09 fluted lens caps mate with CF03,CG03,
CR03, CD 03, CD93 and CF24 style C-lites. These
caps are available in clear lens colors only. The D09
meets MIL-L-3661 type LC30.

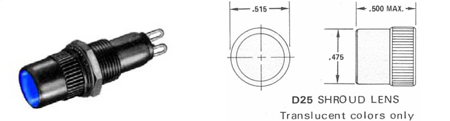

D25
-----------------------------------------------------------------------------------------
The D25 is a full shroud lens with end on
viewing only. The D25 comes in translucent
Colors only and mates with the CF03 and CF24
C-lite incandescent cartridges.
-----------------------------------------------------------------------------------------
